TECHNICAL DATA

ES

Hose size

2"6S

Swaging range(mm)

Φ 6-87

Master die shoe length(mm)

85

Standard voltage

380V/50Hz

Motor power

4kW

Optional voltage &motor

220V/2.2kW

Pump(l/min)

19L

Number of swagings/hour

1000

Noise level (dB)

70

Max opening(mm)

Φ+34mm

Crimping force(kN)

5260

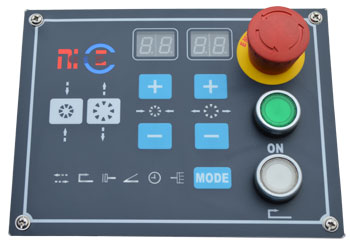

Electric limit switch

√

Electronic control

√

Electric pedal

√

Manual change

√

Dlmenslons LxWxH(mm)

685x530x1320

Weight without oil

350Kg
