TECHNICAL DATA

ES

Hose size

8"16s"

Swaging range(mm)

Φ480

Master die shoe length(mm)

200

Standard voltage

380V/50Hz

Motor power

5.5kW

Optional voltage

440V

Pump(l/min)

36L

Number of swagings/hour

400

Noise level (dB)

75

Max opening(mm)

Φ+66mm

Crimping force(kN)

38000

Electric limit switch

√

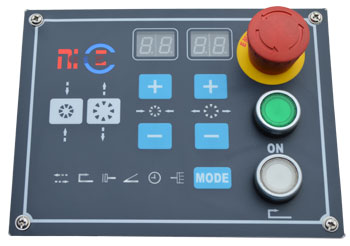

Electronic control

√

Electric pedal

√

Manual change

√

Dlmenslons LxWxH(mm)

1250x820x1250

Weight without oil

1800Kg
